5749263-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5749263-1
Datasheet:
Description:

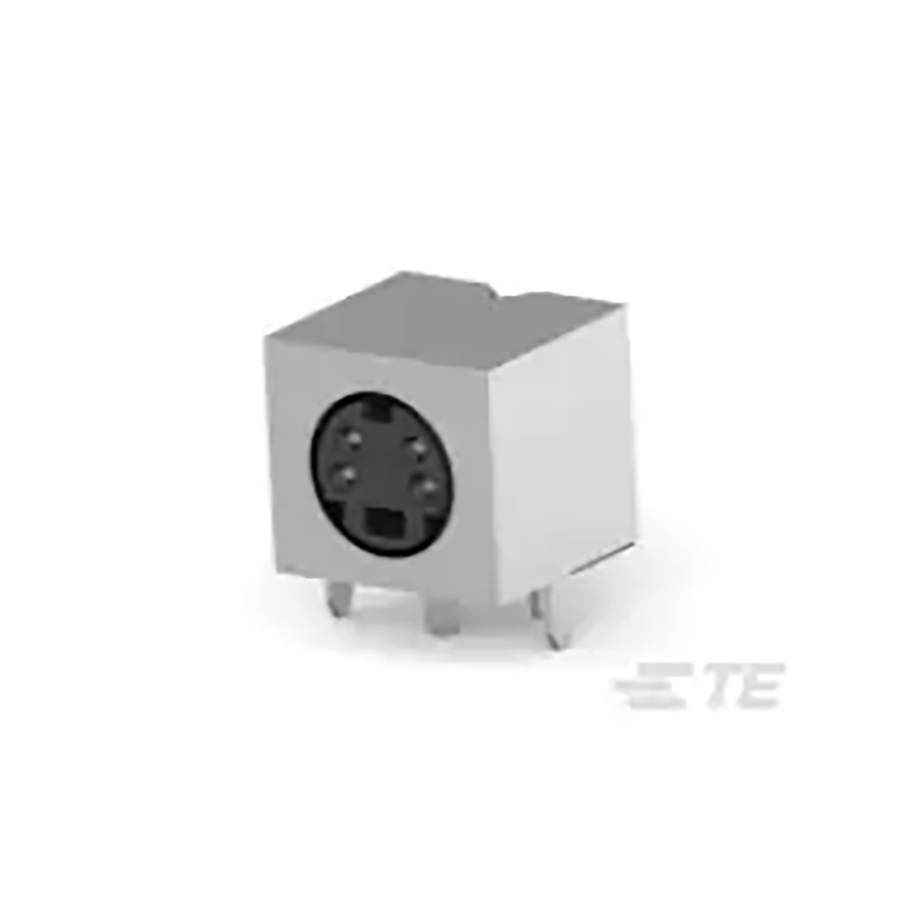

Circular Connectors Through Hole Socket (Female) Solder Header, Receptacle, Socket
| Parameter | Value |
|---|---|
| Length | 12.83 mm |
| Width | 14 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 16.51 mm |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 30 V |
| Depth | 12.83 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Features | Shielded |
| Number of Terminals | 4 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 4 |
| Body Material | Plastic |
| Connector Type | Header, Receptacle, Socket |
| Number of Positions | 4 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Fastening Type | Pull, Push |
| Connector System | Wire-to-Board |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Right Angle |
| Tail Length | 3.18 mm |
| Contact Gender | Socket (Female) |
| Underplate Material | Nickel |
| Shell Material | Copper Alloy |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Alignment | With |
| PCB Mount Retention | Without |
Stock: 605
Distributors
pcbx
pcbxUnit Price$3.00360
Ext.Price$3.00360
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.00360 | $3.00360 |
| 10 | $2.55344 | $25.53440 |
| 25 | $2.42315 | $60.57875 |
| 50 | $2.29951 | $114.97550 |
| 100 | $2.18217 | $218.21700 |
| 300 | $2.07082 | $621.24600 |
| 500 | $1.96515 | $982.57500 |
